Screen Canvas

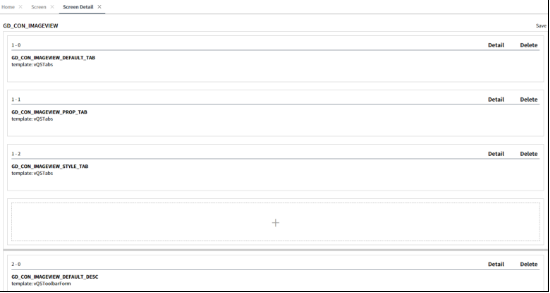

To register or add components to the screen, follow the below mentioned steps.

1. After selecting Screen menu in the Presentation Layer, search for the screen where you want to register components. It's highly recommended to search by a screen name or URL that is easy to recognize or has no duplicates.

2. Double click the Name column in the displayed list to navigate to the detailed screen view.

3. To add or create a new component, click on the plus icon (+) on the screen.

4. Click the Save on the Screen detail page.

5. When you want to delete a registered component on the Screen detail page, you can do so by using the Delete button associated with the component placed on the Screen.

WARNING

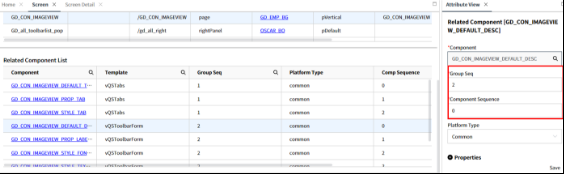

It is highly recommended not to delete the components that already have services registered to them. The reason is that when setting values for Service Action , the information of the component connected to the screen is filled in. Deleting the component may cause the registrered action not to function properly. If you want to change the position of a component within the screen, you can modify the Group Sequence and Component Sequence in the A
