Link-Click

If the UI Type among the columns of the List Component is Link Control, a Button is displayed when you move the mouse over the Control. This is the Click Event of this Button.

• Action Design Example: Link setting in the field of List Component


Set the UI Type property of the Table Column Control to link, and register the link-click Service. Then, in the Action Designer, add the Show Popup Action parameter to call a Popup when the link is clicked.

• Main Action Example:

  • In the Path configuration of the Show Popup action, set the Popup Screen URL as the Key value.

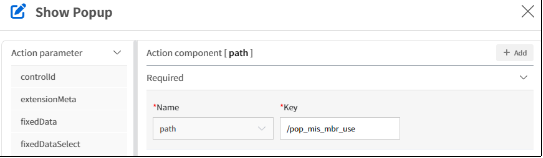

    [Image 1. Show Popup – path configuration]

  • When you click the link, the rid of the List Component is passed as ControlId to the Popup Screen called.

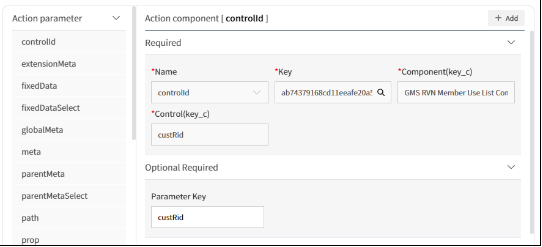

    [Image 1. Show Popup – ControlId]

  • When invoking the Popup, pass the date from the List as a Prop. If the date format is a range (e.g., 2023-01-01~2023-12-31), input the start date and end date into the variables date[0] and date[1], respectively, and pass them along.

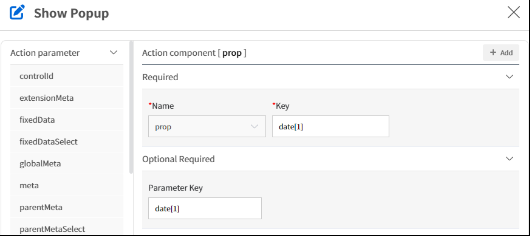

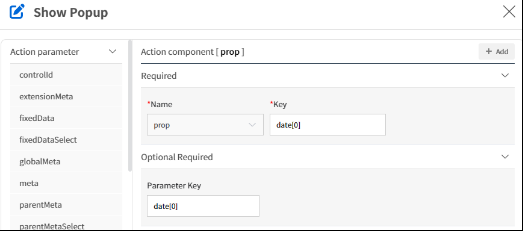

    [Image 3. Show Popup – prop configuration]
